• EV-PEAK U6Q
    3000W/60A
    Quad Channels Intelligent Balance Fast Charger

    Applied to Agriculture Drone / Inspection / Aerial photography / Firefighting / Mapping/ Patrols/ Plant Protection

  • best drone battery charger
best drone battery charger
best drone battery charger agriculture drone charger suppliers

U6Q

Multi-Functional Quad Intelligent Balance Battery Charger with Multi-protection for RC

$999.00

Add To Cart

Description

Designed specifically for RC products, it has multiple protection measures to protect your battery and extend the battery life. The battery charger has a wide range of applications. It supports hobby battery packs for LiPo 3.7V-22.2V (1-6S), LiFe 3.2V-19.2V, LIHV 3.85V-23.1V (1-6S), NiMH/NiCd 1.2V-18V (1-15cells), Pb/SLA, Smart Battery.

Bullet points

  • 【AC/DC Quad Input】This charge power is 100W and the charger battery current is 10.0A. The hobby battery charger is capable of charging four completely different types of batteries at the same time. The lithium charger universal supports AC 110–220V input for worldwide use.
  • 【Multi Functions】The lipo battery charger&discharger features numerous functions which include fast charging, data storage, LIHV and  LiPO balancing, cyclic charging, delta sensitivity discharging, time limit function, and 10 profiles data storage.
  • 【Rapid Charging】 Low on battery power? Can’t find a place to charge your RC cars outdoors and enjoy your RC tour? Don’t worry about any of the above circumstances. Rapid charging with the unique charging algorithm, charges more efficiently, reducing the charging times.
  • 【Security Protection】With a multi-protection mechanism built in, the quad RC charger provides over current, over voltage, leakage, short circuit, over temperature, and reverse protection. Create a safe charging condition and maximum reduce the danger caused by negligence or setting error of user.
  • 【After-sales and Warranty】We provide worry-free customer service and user-friendly support. We will do our best to provide you with perfect after-sales service and protect your rights and interests.
Instructions for use

Product Bullet Point

The EV-PEAK U6Q charger is equipped with quad channels capable of charging 4 batteries at once,
and intelligently identifies the number of batteries to be charged at different currents.

The EV-PEAK U6Q charger is equipped with quad channels capable of charging 4 batteries at once, and intelligently identifies the number of batteries to be charged at different currents.

Quad Channel

Charging 4 Batteries at the Same Time

Large Power

Super Large Battery Current at 60A

Extremely Fast Charging

22000mah takes only 15 minutes

More Secure

Multiple Protection System

Easy Operation& Auto Start

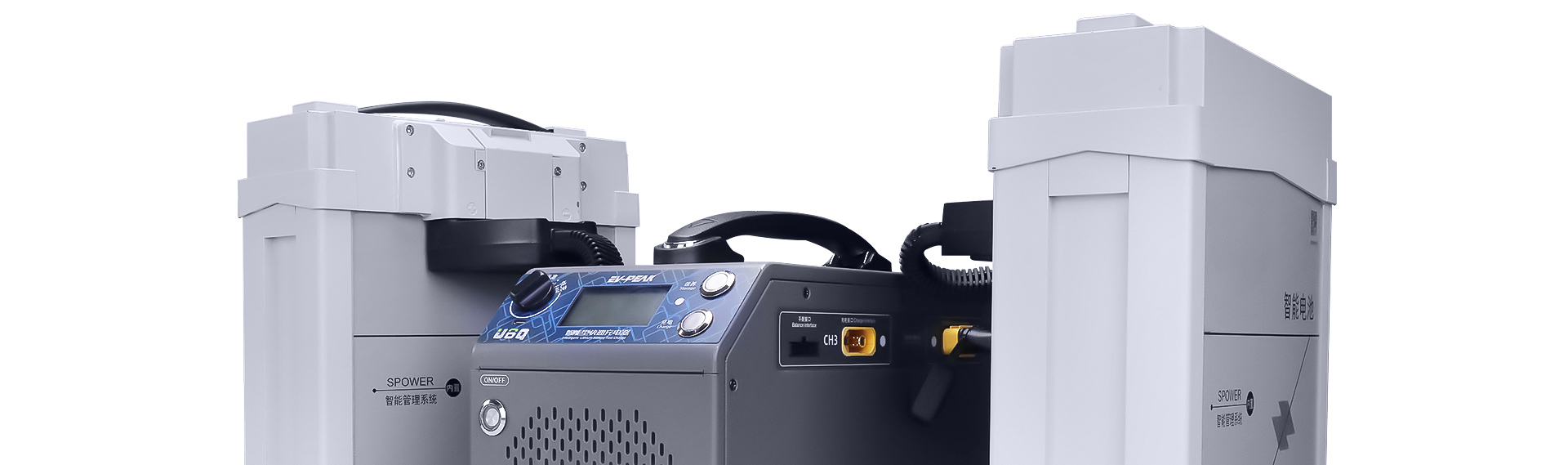

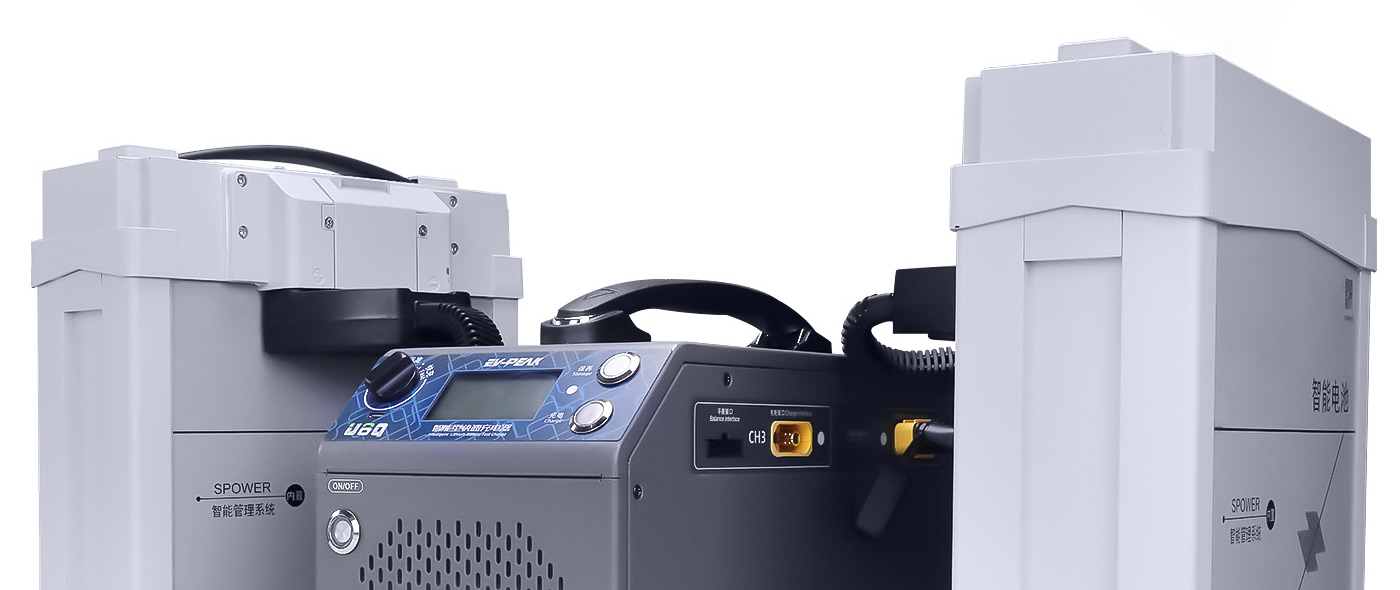

Perfect for agricultural drones, this battery charging station will provide your drone
with the energy it needs to stay charged and ready to fly. Simply plug in the included battery,
press the button and let the machine do all of the work, no cumbersome settings.

Easy Operation& Auto Start

Perfect for agricultural drones, this battery charging station will provide your drone with the energy it needs to stay charged and ready to fly. Simply plug in the included battery, press the button and let the machine do all of the work, no cumbersome settings.

Multi-protection System

This multi-functional and safe charger is designed to look after your drone battery. It is equipped with multiple functions that include over-current, over-voltage, over-charge, over-temperature and offers higher protection for your products to increase the life of your batteries.

Multi-protection
System

This multi-functional and safe charger is designed to look after your drone battery. It is equipped with multiple functions that include over-current, over-voltage, over-charge, over-temperature and offers higher protection for your products to increase the life of your batteries.

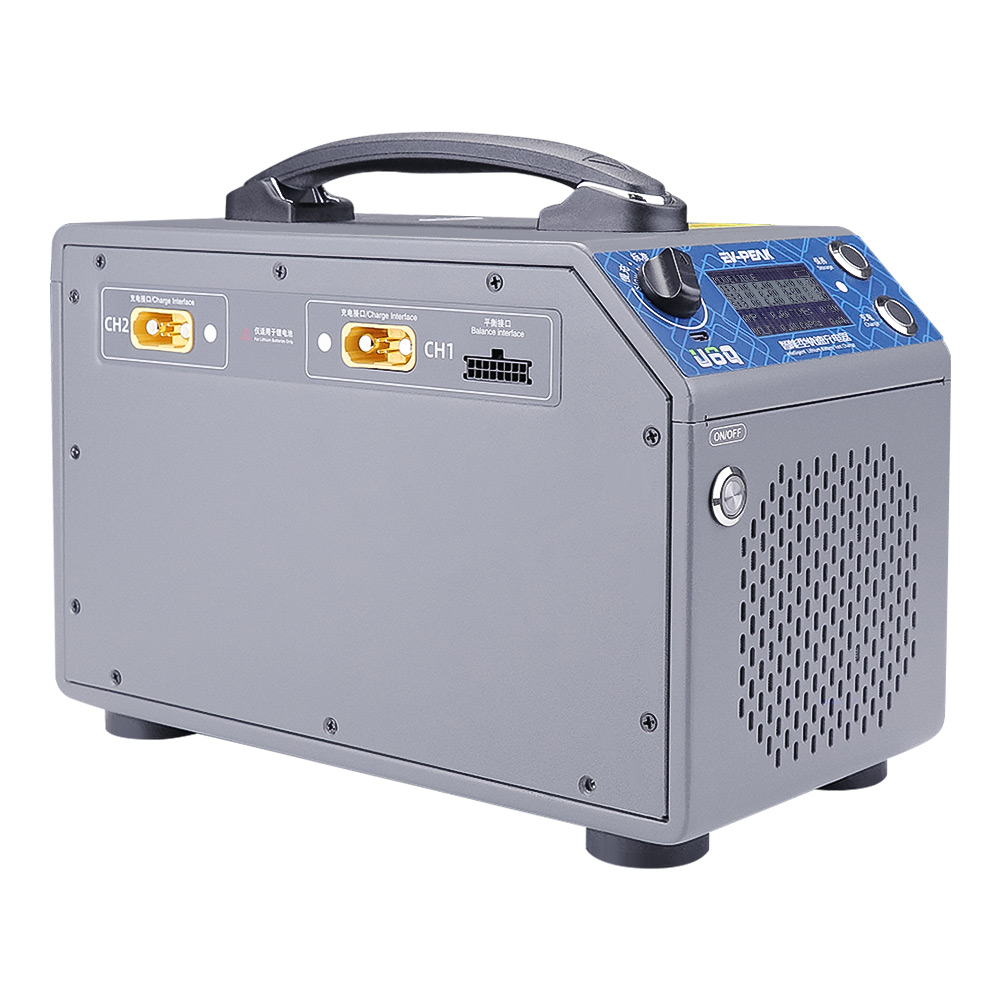

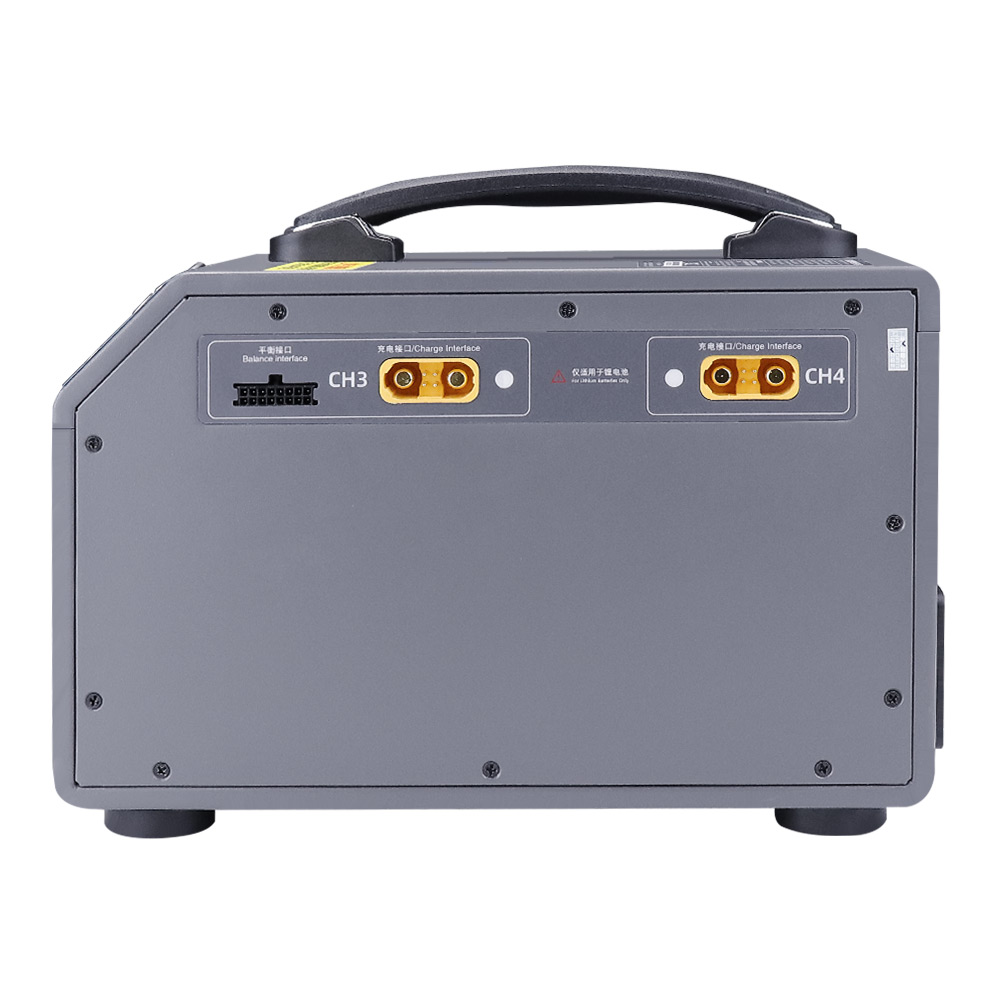

4 Channel Independent Output

U6Q is a quad-channel charger, which can charge 4 batteries at once. Instead of waiting for the charger,
you just need to connect your battery at once.The maximum current can reach 60A, and it only takes about 20 minutes to
fill a 22000mah battery. The charger can charge 4 batteries at the same time at 15A.
When in the middle it will become the standard charging mode, which can charge two batteries at 30A.

4 Channel Independent Output

U6Q is a quad-channel charger, which can charge 4 batteries at once. Instead of waiting for the charger, you just need to connect your battery at once.The maximum current can reach 60A, and it only takes about 20 minutes to fill a 22000mah battery. The charger can charge 4 batteries at the same time at 15A. When in the middle it will become the standard charging mode, which can charge two batteries at 30A.

RC car battery charger

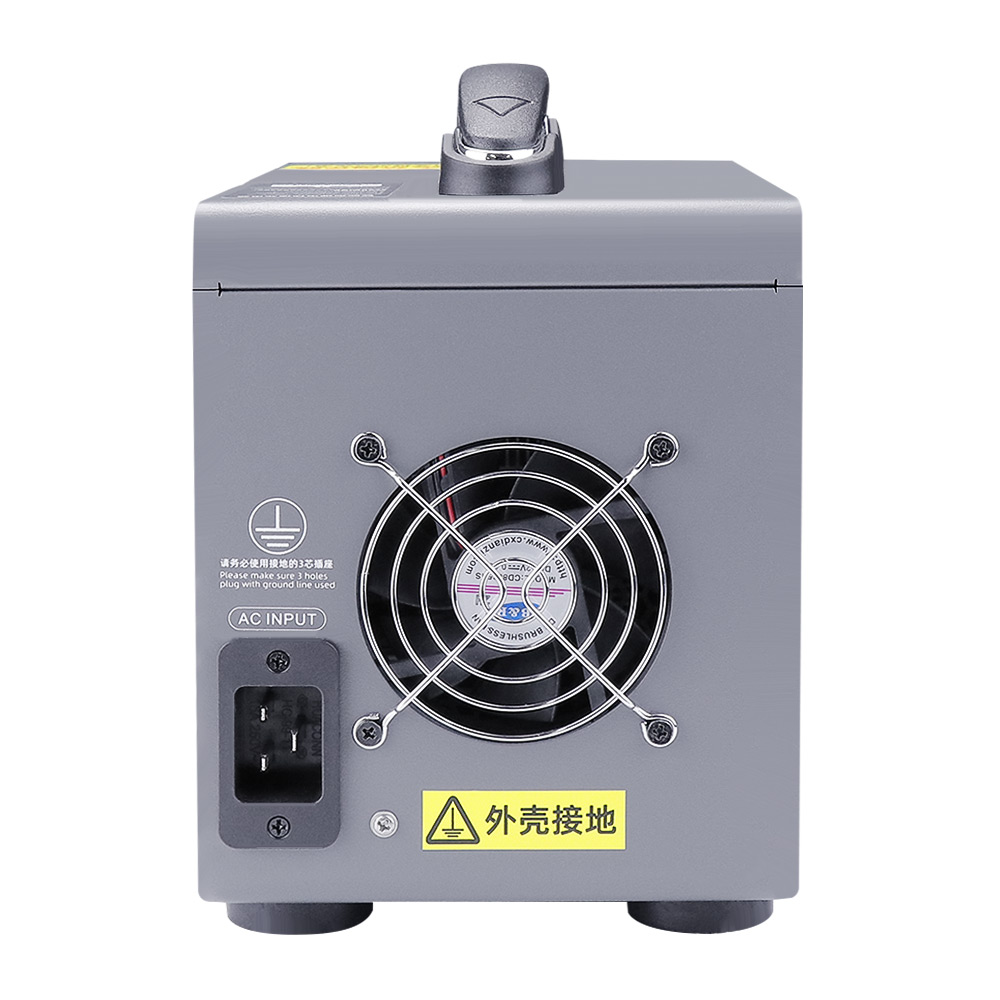

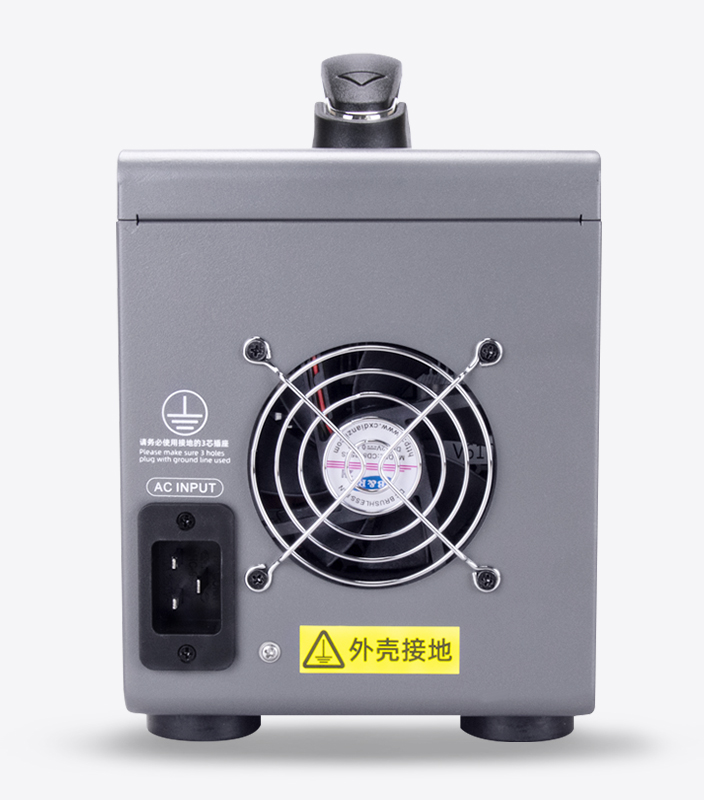

Powerful Heat Dissipation

Metal shell, fireproof, and built-in large-scale aluminum heat sink, which can swiftly disperse heat and keeps the charger at a constant safe temperature.

Powerful Heat Dissipation

Metal shell, fireproof, and built-in large-scale aluminum heat sink, which can swiftly disperse heat and keeps the charger at a constant safe temperature.

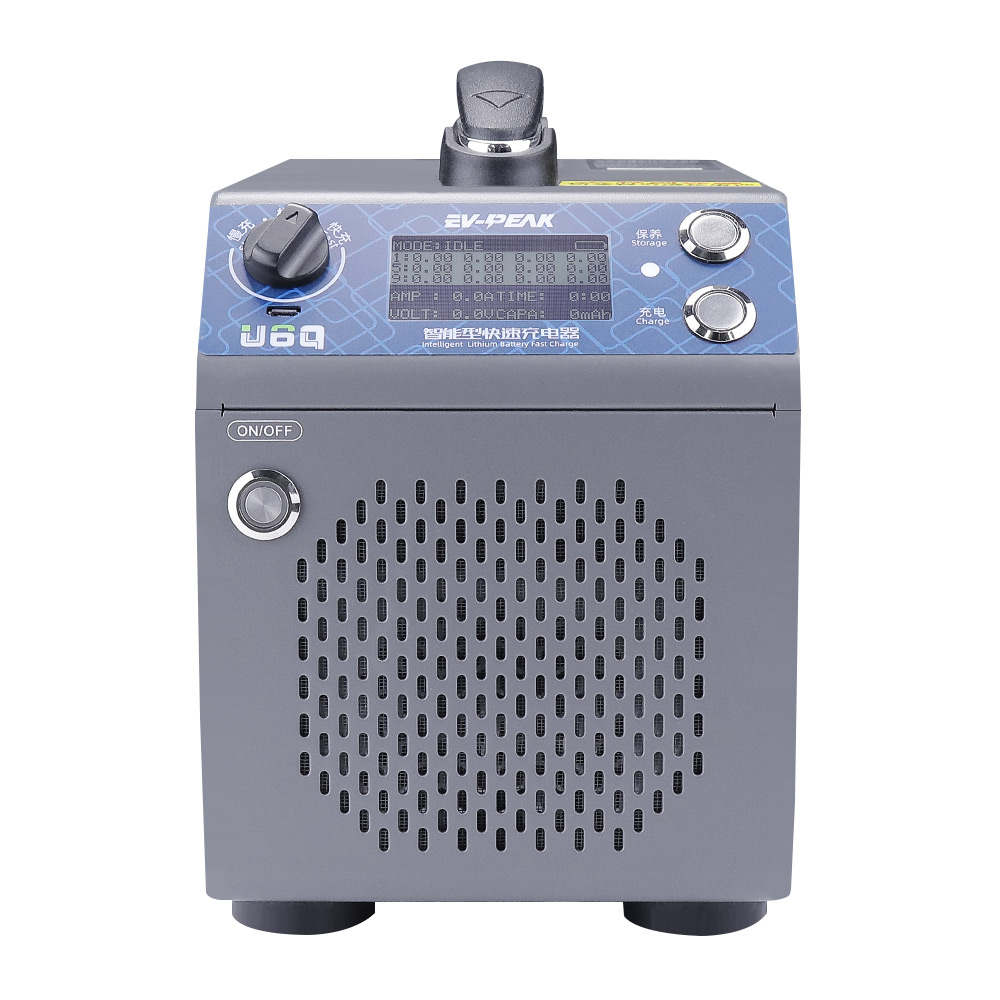

Intuitive Display

This intelligent charger is a combination of the multi-functional display and the intelligent identification chip that provide a quick and accurate assessment of the battery. With its LCD screen, you can instantly display charging information for working mode, battery current, battery voltage, charging time, battery capacity etc.

Intuitive Display

This intelligent charger is a combination of the multi-functional display and the intelligent identification chip that provide a quick and accurate assessment of the battery. With its LCD screen, you can instantly display charging information for working mode, battery current, battery voltage, charging time, battery capacity etc.

What’s in The Box

What you will receive in the box.

1*CQ3 Battery Charger

1*XT60 Plug

1*AC Power Cord USA, 4*T-Plug

4*JST-XH

Specifications

AC Input Voltage: 100-240V

Charge Power: Max.3000W

Charge Current: Max.60A

Battery Type: LiPo/LiHV/Intelligent Battery

Battery Cell Count: 6-14S

Dimension: 303*150*220mm

Weight: 6.5KG
